DIRECT DRIVE UNITS

Hidden type condenser

C-1000 / C-2000 / C-3000

Condenser

(Installed in vehicle engine compartment)

C-1000

W : 508 / L : 92.5 / H : 318(mm)
Weight : 4.1kg

C-2000

W : 719 / L : 12.15 / H : 405(mm)
Weight : 7.8kg

C-3000

W : 750 / L : 60 / H : 485(mm)
Weight : 3.3kg

Evaporator

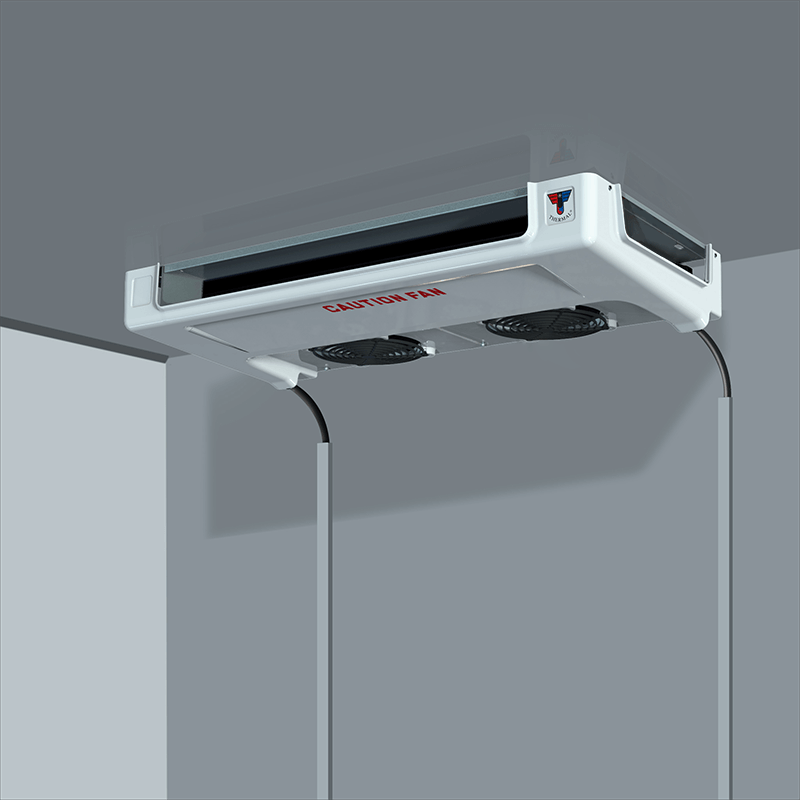

Evaporator 1 (C-1000)

W : 724 / L : 563 / H : 187(mm)
Weight : 11.8kg

Evaporator 2 (C-2000 / C-3000)

W : 1,026 / L : 650 / H : 187(mm)
Weight : 17kg

C-1000/2000/3000 refrigeration capacity (Ambient 30ºC / 2400RPM / Return air to evaporator)

Defrosting method: Automatic, manual hot gas defrosting

Controller
: Main automatic temperature controller (Relay box separation type)

Compressor
: TM08 / TM13 / TM15

DIRECT DRIVE UNITS

Condenser

C-1000

C-2000

C-3000

Evaporator

Evaporator 1 (C-1000)

W : 724 / L : 563 / H : 187(mm)
Weight : 11.8kg

Evaporator 2 (C-2000 / C-3000)

W : 1,026 / L : 650 / H : 187(mm)
Weight : 17kg

Applicable to
small trucks and vans

C-1000/

Outside temperature : 40℃
0℃ 11m³

C-2000/

Outside temperature : 30℃ / 40℃
0℃ 18m³/ 11m³

-20℃ 11m³/7m³

C-3000/

Outside temperature : 30℃
0℃ 18m³
