Direct drive units for small truck and van
T-500 / R / SE / H
Condenser
T-500 / H
Front/Nose mount condenser
W : 905 / L : 405 / H : 310(mm)
Weight : 21kg

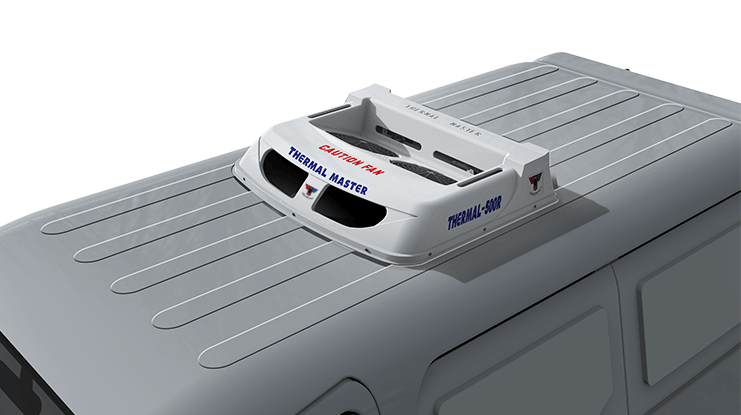

T-500 / R
Roof mount condenser
W : 940 / L : 825 / H : 182(mm)
Weight : 32.5kg
T-500SE
Front/Roof mount condenser with
built in standby
W : 1,150 / L : 500 / H : 275(mm)
Weight : 98kg
Evaporator
W : 724 / L : 563 / H : 185(mm)
Weight : 11.8kg
T500 refrigerating capacity (Ambient 30ºC / 2400RPM / Ambient)
Controller
: Main automatic temperature controller (Relay box separation type)Automatic recovery during compressor input error, built-in heat-resisting case CPU,
Consistent vehicle battery monitoring function
Option
: Temperature recording instrument
Compressor
: TM13 (Displacement : 131cc / 6 Cylinders)
Applicable to
small trucks and vans
Outside temperature : 30℃ / 40℃
0℃ 12m3 / 6m3
-20℃ 7m³/4m³
