Vehicle engine driven unit applicable to large vans
T-SUPER VAN
Roof mount condenser
Condenser
W : 1,435 / L : 1,130 / H : 230(mm)
Weight : 35kg

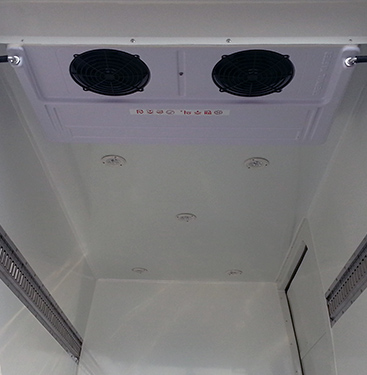

Evaporator
W : 1,225 / L : 700 / H : 187(mm)
Weight : 23.5kg
T-SUPER VAN refrigerating capacity (Ambient of 30ºC / 2400RPM)
Controller
: Main automatic temperature controller (Relay box separation type)
Automatic recovery during compressor input error,
built-in heat-resisting case CPU,
Consistent vehicle battery monitoring function
Option
: Temperature recording instrument
Compressor
: QP16 or TM16 (Displacement : 163cc / 6 Cylinders)
Applicable to
small trucks and vans
Outside temperature : 30℃ / 40℃
0℃ 30m3 / 13m3
-23℃ 17m³
