MONO BLOCK UNITS

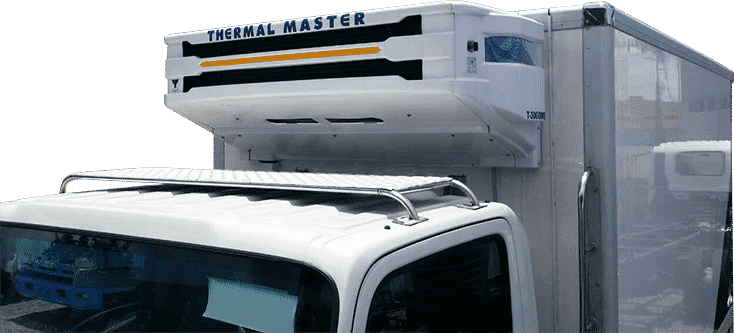

Mono block unit for medium sized truck with integrated evaporator/condenser,
Option: Standby unit

T-3000MB / SE

Condenser

W : 1,800 / L : 700 / H : 625(mm)
3000MB Weight : 128kg,  3000MB/SE 무게 : 186

Evaporator

W : 1,420/ L : 76.5 / H : 487(mm)

T-3000MB refrigerating capacity (Ambient 30ºC / 2400RPM)

Controller
: Main automatic temperature controller (Relay box separation type)

Compressor
: TM21 (Displacement : 215cc / 10 Cylinders)

Applicable to medium sized truck
Outside temperature : 30℃ / 40℃
0℃   36m³/27m³
-20℃   29m³/23m³
