WALK-IN FREEZER

Walk-in Freezer

T-1700

Size

  • 2000 X 3000 X 3000 mm

Performance

  • Per compartment x 2
  • Cooling Capacity : 1460 kcal/h
  • Compressor Capacity : 2HP
  • Refrigerant : R404a
  • Power supply : 220V / 380V / Both

Specification

  • Material : Polyurethane
  • Thickness : 100 ~ 150 mm
  • Skin : Zink Plated Iron (Compartment optional)

Walk-in Freezer

T-2500-E220V-TB

Size

  • Size : 2000 X 4000 X 3000 mm
  • Size : 2000 X 5000 X 3000 mm
  • Size : 1800 X 4245 X 2000 mm

Performance

  • Per compartment x 2
  • Cooling Capacity : 1100 kcal/h , 730Kcal/h
  • Compressor Capacity : 1HP
  • Refrigerant : R404a
  • Power supply : 220V / 380V / Both

Specification

  • Material : Polyurethane
  • Thickness : 100 ~ 150 mm
  • Skin : Zink Plated Iron (Compartment optional)

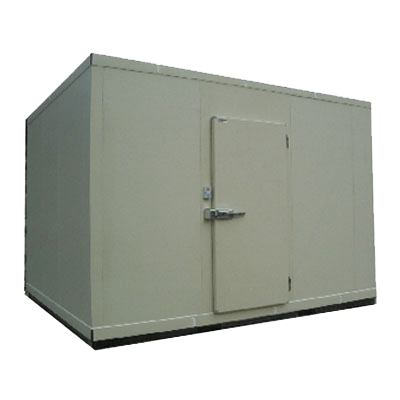

Walk-in Freezer

T - 3400

Size

  •  2000 X 3000 X 3000 mm

Performance

  • Per compartment x 2
  • Cooling Capacity : 1460 kcal/h
  • Compressor Capacity : 2HP
  • Refrigerant : R404a
  • Power supply : 220V / 380V / Both

Specification

  • Material : Polyurethane
  • Thickness : 100 ~ 150 mm
  • Skin : Zink Plated Iron (Compartment optional)

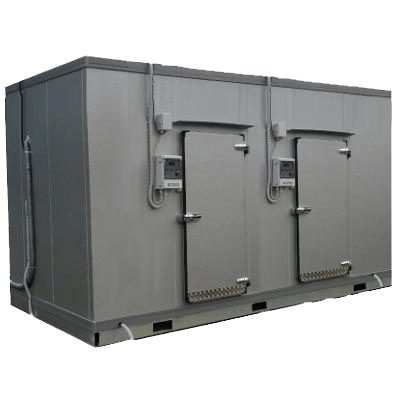

Walk-in Freezer

T-5100

Size

  • Size : 2000 X 9000 X 3000 mm

Performance

  • Per compartment x 2
  • Cooling Capacity : 1100 kcal/h
  • Compressor Capacity : 1HP
  • Refrigerant : R404a
  • Power supply : 220V / 380V / Both

Specification

  • Material : Polyurethane
  • Thickness : 100 ~ 150 mm
  • Skin : Zink Plated Iron (Compartment optional)

- Remark

  • 220V & 380V applicable
  • During a power outage, freezer can be operated by separate diesel engine (Specialized products for the army or remote area)
  • Additional Option : Solar panel + ESS (Energy Storage System) applicable
  • Remote controlling and Monitoring
